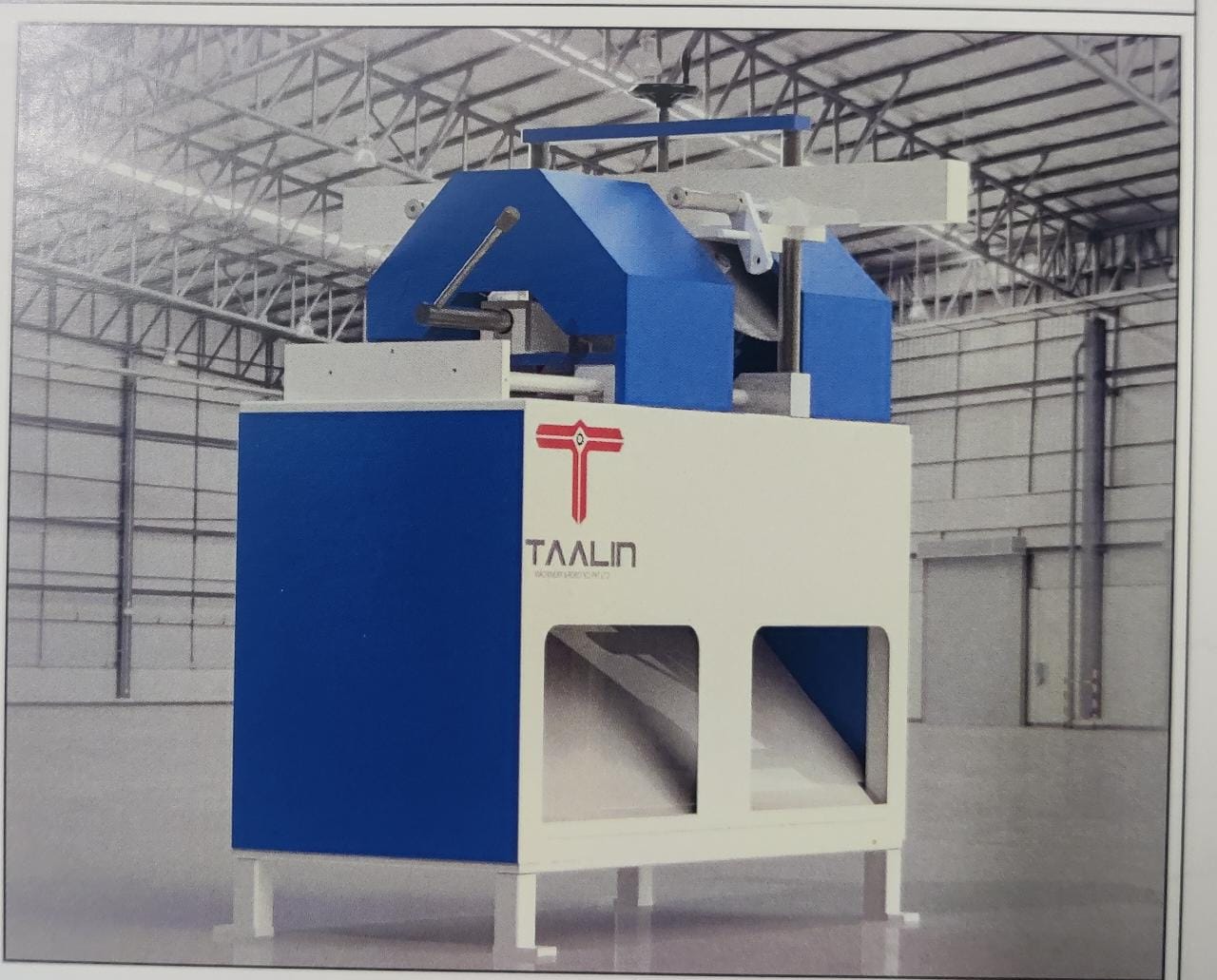

Manual Glazing Bead Saw Machine (SGB 100M)
Manual Glazing Bead Saw Machine (SGB 100M)
Cutting of bead profiles in 45? angle, special saw blades positioned for cutting clips at 45?, Automatic feed of blades with adjustable speed, special black arrangement for different types of beads, Vertical clamping system, simple push button for moving the blades manual scale and conveyor is default with machine, On request Digital scale can be configured with the machine.
- Model:SVC 2A5
- Phase:Three-Phase 400 Volt
- Weight:160 kg
- Air Consumption:60 LPM
Dimensions
- Length:L-1590 mm
- Height: H- 1280 mm
- Width: W- 810 mm
Packaging
- Length:L-1640 mm
- Height: H- 1330 mm
- Width: W-860 mm
