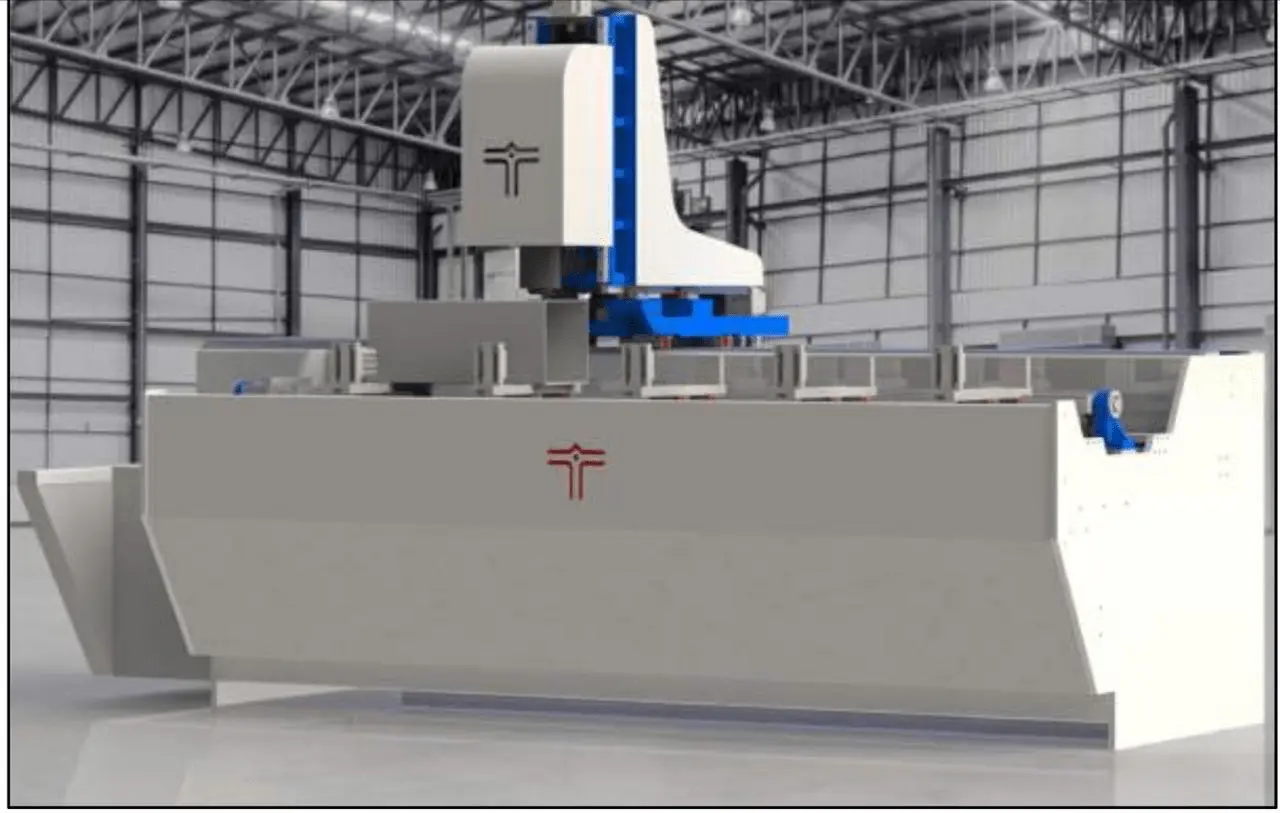

MC 3N1 Profile Machining Center 3 Axis having interpolation and 4 th one in pneumatically actuated for profile overturn with 2250 mm standard working length having the option to increase it up-to 3000mm, can do routing, end milling and water drainage slots operations in one cycle. High speed Spindle system with a number of preloaded macros to assist all kind of hardware routings slots. Servo based control systems with planetary gear boxes ensure high precision in all applications. Operation range of up-to 3000mm in X-axis, 160mm-in Y axis and 250mm-in Z axis. Full CNC touch controller has the capability of remote access for quick troubleshooting from OEM to reduce the breakdown time to very minimal level.

Features and Functionality:-

  • Easy to use Industrial Touch Screen Interface (CNC controller)– Ideally suited for factory environments.
  • It can do all kind of routing applications as per design. All new programs can be developed in the format of Macros or through “TaaLCAM” software with scaling up or scaling down features.
  • 4 number of easy to shift manually adjustable pneumatic clamps (with the option for additional clamp) give higher grip in case of aluminium routing and milling applications.
  • End Milling Applications can be carried out precisely with the help of specially designed end milling cutter.
  • A Library of Pre-loaded Macros (both in Controller and TaaLCAM software) are available by default with the machine which helps in carrying out most of the contemporary hardware fixing slot routings. It has scalable features.
  • The overturn of profile allows working on 3 sides of profile to carry out all operations through program without the need for manual intervention.
  • Three-Axis high speed Absolute Servo driven system provides accurate positioning and reduces cycle time since machine homing is never required. Three of the axes have interpolation features while the 4 th Rotary axis has 3 fixed positions such as 0°,90° & -90° which is actuated Pneumatically.
  • High Speed 5 Kw Electro Spindle is durable and accurate to carry out routing, end milling and drainage slot applications.
  • Ethernet protocol for high-speed communication between servo system & CNC controllers, minimises wirings while reducing cycle times.
  • The machine CNC controller comes with enhance features of Remote Access which enables the OEM to develops application programs & carry out troubleshooting to reduce machine down time.
  • Large number of profile programs can be stored to avoid the requirement of re-programming.
Technical Specification
Voltage 400 v, 3~, 50 Hz, 5 Kw
Tool Collate ER 25
Spindle Motor 3.5 Kw
Servo Packs 0.4 Kw X 2 & .75 Kw
Compressed Air 7 Bar/100psi
Air Consumption 200 Litre. Per cycle
Dimensions(Length, Width, Height) 2220x900x1750 mm
Weight 1050KG

Optional Features:-

  • Windows based control screen for both machine operation and programming.
  • Additional regular or customised Clamp.
