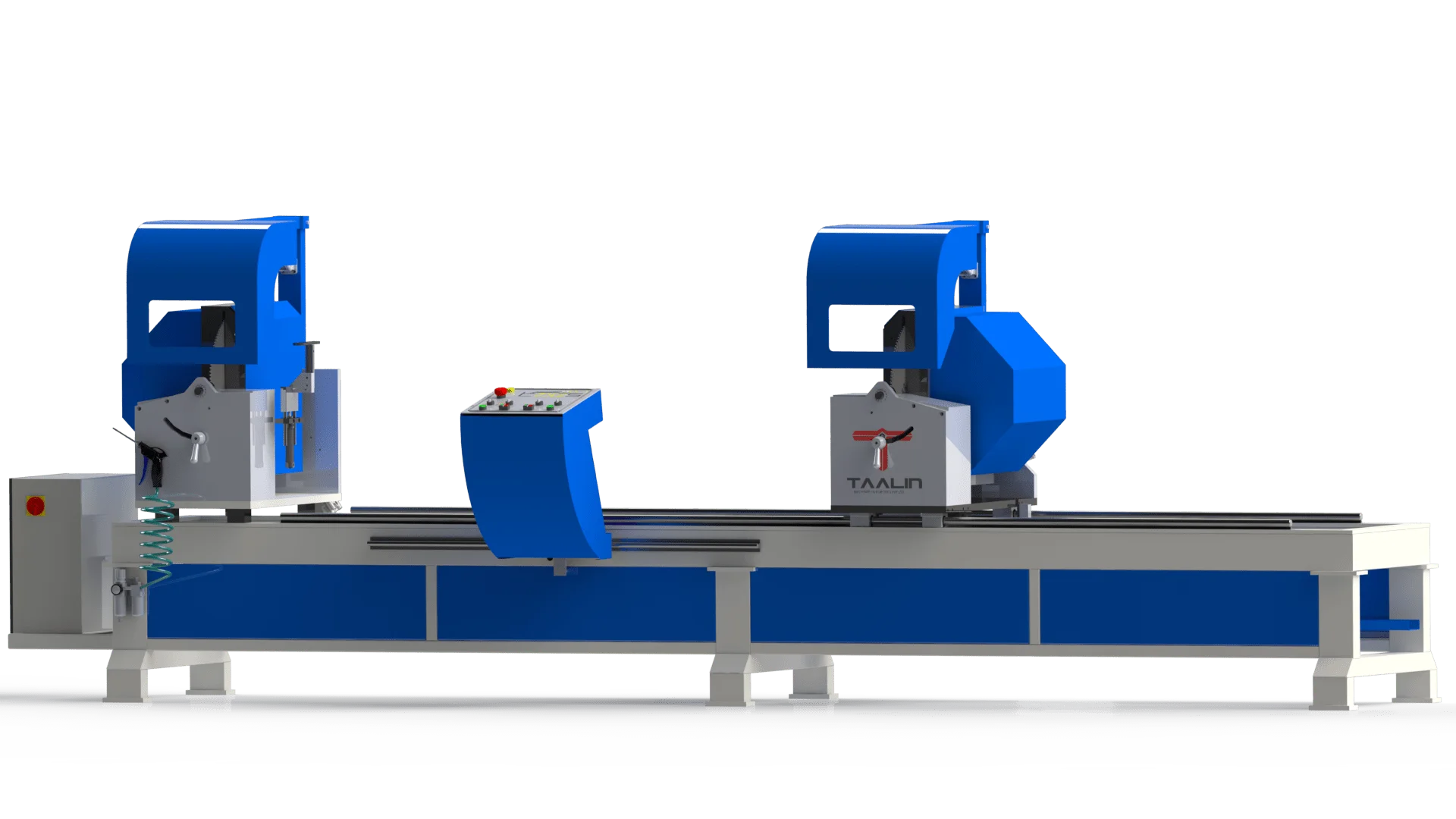

Manual Double Head Cutting Machine/500mm Saw/4000mm/Aluminium (SDM-20M-AL)
Manual Double Head Mitre Saw (Frontal) with 500mm dia., TCT saw blades, horizontal & vertical Pneumatic clamps, Hydro-pneumatic feed, Profile middle support, max. cut length 3800mm.
Features and Functionality:-
- Cuts PVC & Aluminium profile at 45°-90° automatically and intermediate degrees by means of manual setting.
- Profile Cutting Capacity at 90 degrees is 183x250mm in curvature orientation.
- Profile Cutting Capacity at 45 degrees Is 183x180mm in curvature orientation.
- The left head of the machine is fixed and the right head moves on the basis of bearing mounted on precise LM shafts.
- Moving head positioning by means of a pointer and measuring scale, the movement is carried out by hand pulling.
- 2200 mm right head conveyor support along with manually activated middle support for profile to avoid inaccuracies due to profile sagging.
- Easily adjustable blade cutting speed.
- Ergonomic design for ease of us.
- Self-closing protective hoods for work safety.
- Easily adjustable Vertical and horizontal pneumatic profile clamping system for the best fixation.
Optional:-
- Dust collector
| Technical Specification |
| Saw Blade Diameter |
500 mm
|
| Voltage |
380-415v, 3~, 50 Hz
|
| Motor Power
| 2x 2.2 Kw
|
| Compressed Air
| 7 bar
|
| Dimensions(Length, Width, Height)
| 5190 x 1320 x 1620 mm
|
| Weight
| 950KG
|
