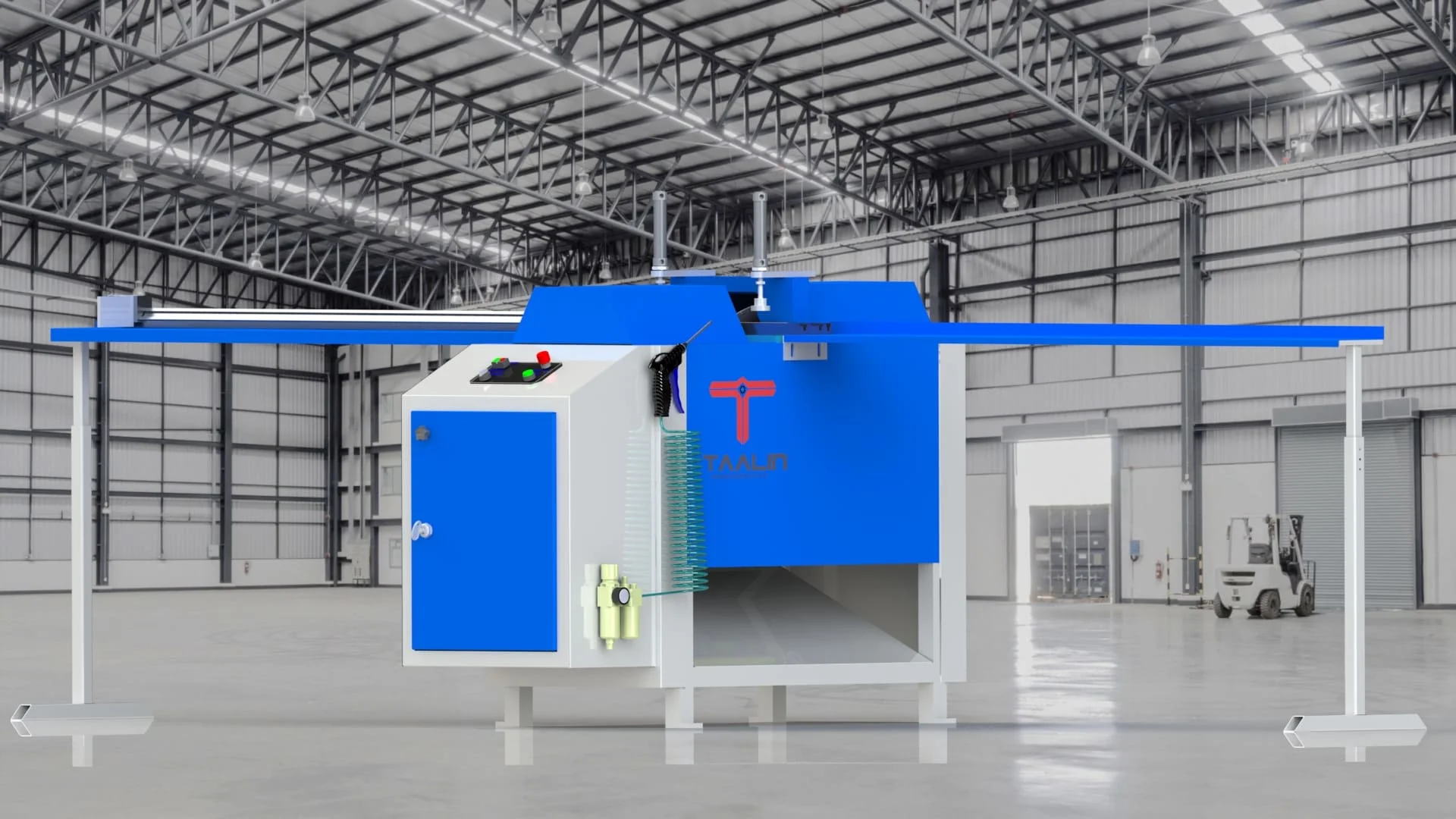

Digital Glazing Bead Saw Machine (SGB-100D)

Features and Functionality:-

• The machine is standard equipped with completed bearing and digital measuring conveyors (2.5+2.5 meters long each).
• Servo motor with planetary gear box gives high precision position accuracy.
• PLC cum Touch screen interface for user friendly machine operation.
• Two or more bead pieces (depending on size) can be cut during a single cycle.
• Suitable for fast cutting of 45-degree mitred beads only.
• Automatically trims the back leg (trailing edge) of the bead for seamless glass fitting.
• Two fixed, opposed blade motors on the mobile carriage set at 45° to the workpiece support surface in configuration.
• 4 cutting saw blades HSS (High Speed Steel) with trailing edge cutting by small blades.
• Vertical pneumatic clamping system.
• Setting handle for easy mould adjustment.
• Adjustable cutting speed with regulator on control panel.
• Double cutting in one time with special blocks.
• Care has been taken over the safety measures, both mechanical and electrical.
• Power supply protects system from voltage overload.



Standard Accessories:-

• Digital measuring scale with radio frequency data transfer.
